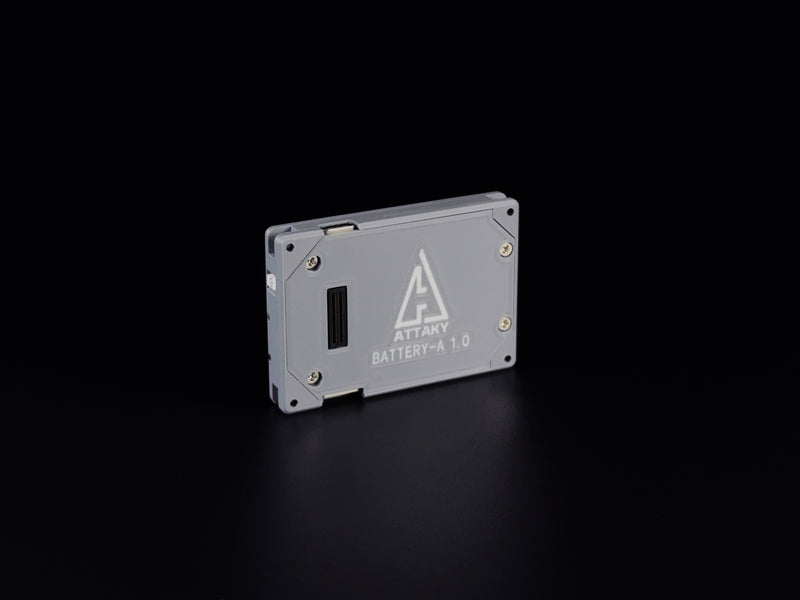

Power : Standard Cell 1.0

Rechargeable battery power for your portable Attaky.

Power: Standard Cell 1.0 powers your Attaky Core and attached modules with a 1000 mAh rechargeable lithium-ion battery. A dedicated fuel gauge supplies battery data to compatible firmware for an on-screen charge display.

Connect it behind the Core or through the Core's 7-pin Power connection, depending on your Frame. The rear board-to-board passthrough lets an Expand module stack behind the battery when you use the direct board-to-board route.

Highlights

·         1000 mAh rechargeable single-cell lithium-ion battery.

·         MAX17048 fuel gauge for battery charge and voltage reporting over I²C.

·         Charging through the Core's USB-C port during normal assembled use; the device can remain in use while charging.

·         Dedicated on-module USB-C port for charging when detached or when the Core is powered off.

·         Front board-to-board or 7-pin Power connection to the Core, using one route at a time.

·         Rear board-to-board passthrough for a compatible Expand module in a Core–Power–Expand stack.

·         Edge-mounted power button and power/charging indicators.

·         Module dimensions: 66 × 46 × 10 mm.

What you receive

1 × Power: Standard Cell 1.0 module.

Before you use it

Requires an Attaky Core and the appropriate Frame and connectors. Use either the front board-to-board connection or the 7-pin connection to the Core, never both at once. With the Core powered on, charge through the Core's USB-C port. Battery runtime depends on your modules, firmware, display settings, and usage.

Operating temperature: 0–40 °C. Keep the module dry; it has no water-resistance or IP rating.

Early Module Access

We made Attaky modules available earlier than planned because some community members have already requested them.

Video tutorials are coming soon, including guides for frame installation, module swapping, and connecting different Attaky modules together.

In the meantime, our written documentation and module specifications are already available. If you are comfortable reading specs, pinouts, compatibility notes, and word-based setup guides, you can review the documentation first and order modules now.

Please note that our configurator currently focuses on complete build combinations, so module-level Lab Access visual previews are not available yet. You can still use the configurator to explore colors, layouts, and build directions, then message us with your idea. We can help customize a Lab Access module setup for your project.

Please check the specs carefully before ordering to make sure the module matches your build, frame, firmware, and project needs.

Please find word-based documentation at:

https://docs.attaky.com/docs/modules/power/standard-cell
