$42.00 $22.00 SALE

Custom built for you. Ships in 7–14 days. We’ll email you about any delays.

Add microSD storage, a microphone, and speaker audio to your Attaky.

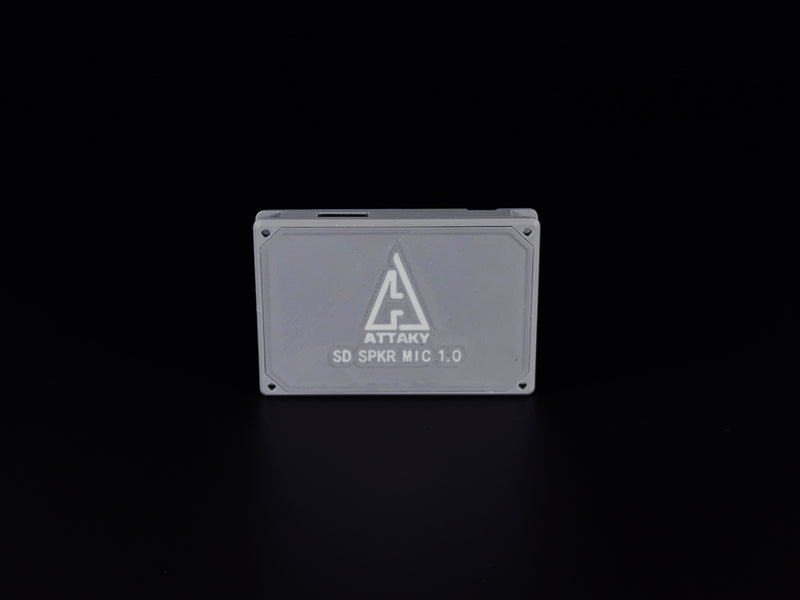

Expand: Media Junior 1.0 gives your Attaky Core removable storage, voice input, and speaker audio in one compact module. Load game files from a microSD card, play game sound, or use the microphone and speaker for a compatible voice assistant.
The hardware can serve different roles as you change firmware. Pair it with a Gamepad and Retro-Go for retro gaming, or install Mr.Z AI chatbot for voice conversations over an internet-connected Wi-Fi network.


Highlights
•    Push-in microSD card slot for game files, media, and saved data used by compatible firmware.
•    Speaker audio through an NS4168 mono Class-D amplifier.
•    ICS-43434 digital MEMS microphone for voice input.
•    I²S audio interfaces and an SD storage interface carried through the rear connector.
•    Works with Attaky-compatible Retro-Go and Mr.Z AI chatbot firmware in the appropriate configuration.
•    Module dimensions: 66 × 46 × 8.5 mm.


What you receive
1 × Expand: Media Junior 1.0 module.


Before you use it
Requires an Attaky Core and compatible firmware. For retro gaming, add a supported Control module and your own microSD card and game files. microSD card and games are not included. Mr.Z AI chatbot requires an internet-connected Wi-Fi network for its AI voice functions.
Operating temperature: 0–40 °C. Keep the module dry; it has no water-resistance or IP rating.



Early Module Access

We made Attaky modules available earlier than planned because some community members have already requested them.

Video tutorials are coming soon, including guides for frame installation, module swapping, and connecting different Attaky modules together.

In the meantime, our written documentation and module specifications are already available. If you are comfortable reading specs, pinouts, compatibility notes, and word-based setup guides, you can review the documentation first and order modules now.

Please note that our configurator currently focuses on complete build combinations, so module-level Lab Access visual previews are not available yet. You can still use the configurator to explore colors, layouts, and build directions, then message us with your idea. We can help customize a Lab Access module setup for your project.

Please check the specs carefully before ordering to make sure the module matches your build, frame, firmware, and project needs.


Please find word-based documentation at:

https://docs.attaky.com/docs/modules/expand/media-io
