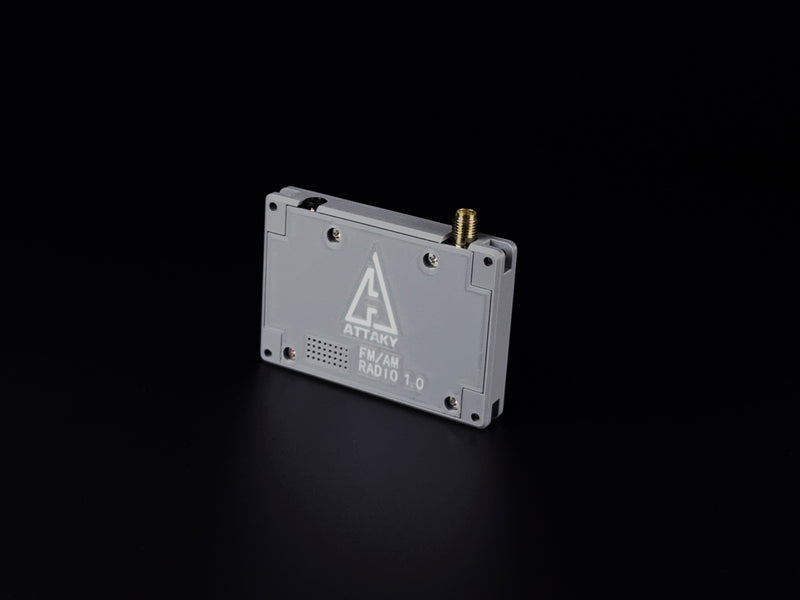

Expand : FM/AM Radio 1.0
$43.00
$22.00
SALE
Broadcast radio listening through a speaker or headphones.
Expand: FM/AM Radio 1.0 turns your Attaky Core into a broadcast radio receiver. Attach the module, install compatible FM/AM Radio firmware, and tune stations using your Core's display and controls.
Listen through the onboard speaker or connect headphones to the 3.5 mm jack. The hardware switches audio automatically when headphones are inserted or removed.
Highlights
· TEF6687 AM/FM tuner with digital-IF demodulation.
· FM coverage from 65 to 108 MHz, plus AM long-wave, medium-wave, and shortwave reception.
· FM stereo and RDS / RBDS station information, where broadcast and supported by firmware.
· Onboard speaker amplifier and a separate headphone amplifier.
· 3.5 mm headphone jack with automatic speaker/headphone switching.
· Detachable telescoping antenna with an SMA connection.
· Module dimensions: 66 × 46 × 10.5 mm, excluding the antenna.
What you receive
1 × Expand: FM/AM Radio 1.0 module.
Before you use it
Requires an Attaky Core and compatible radio firmware. Extend the antenna and choose a location with good reception. This module receives analog FM and AM broadcasts; it does not support HD Radio or DRM digital broadcasts.
Operating temperature: 0–40 °C. Keep the module dry; it has no water-resistance or IP rating.
Early Module Access
We made Attaky modules available earlier than planned because some community members have already requested them.
Video tutorials are coming soon, including guides for frame installation, module swapping, and connecting different Attaky modules together.
In the meantime, our written documentation and module specifications are already available. If you are comfortable reading specs, pinouts, compatibility notes, and word-based setup guides, you can review the documentation first and order modules now.
Please note that our configurator currently focuses on complete build combinations, so module-level Lab Access visual previews are not available yet. You can still use the configurator to explore colors, layouts, and build directions, then message us with your idea. We can help customize a Lab Access module setup for your project.
Please check the specs carefully before ordering to make sure the module matches your build, frame, firmware, and project needs.
Please find word-based documentation at:
https://docs.attaky.com/docs/modules/expand/fm-am-radio
