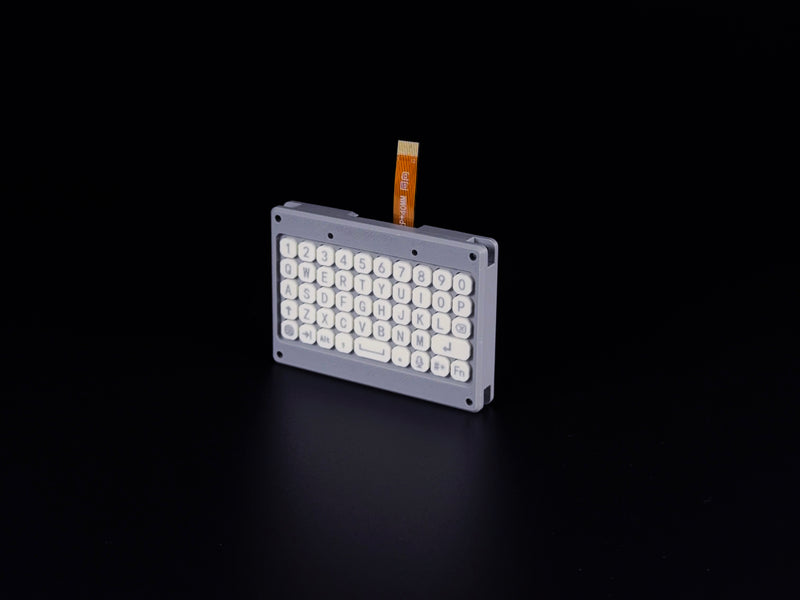

Control : Keyboard (Bottom) 1.0
$58.00
$31.00
SALE
A physical QWERTY keyboard for messages, notes, and text input.
Control: Keyboard (Bottom) 1.0 adds a 48-key QWERTY keyboard to your Attaky. Type messages, enter settings, name contacts, or write notes using physical keys whenever your installed firmware supports text input.
It connects to the Core through Attaky's Control interface and includes a passthrough connection for a second Bottom Control module. Pair it with a Gamepad when your project needs both typing and game-style controls.
Highlights
· 48 physical keys with a QWERTY layout.
· Letters, numbers, common punctuation, Enter, Delete, and Space.
· Shift, Tab, Alt, language, and Fn keys for firmware-supported functions.
· RGB status indicators for the left and right scan zones.
· I²C input interface through two 12-pin FPC connectors.
· UP connection to the Core and DOWN passthrough for a compatible second Control module.
· Module dimensions: 66 × 46 × 9.5 mm.
What you receive
1 × Control: Keyboard (Bottom) 1.0 module.
Before you use it
Requires an Attaky Core, the appropriate FPC connection and Frame, and firmware that supports the keyboard. Key mappings and special functions depend on the installed firmware. The supported Bottom Control chain can hold a Keyboard and a Gamepad together.
Operating temperature: 0–40 °C. Keep the module dry; it has no water-resistance or IP rating.
Early Module Access
We made Attaky modules available earlier than planned because some community members have already requested them.
Video tutorials are coming soon, including guides for frame installation, module swapping, and connecting different Attaky modules together.
In the meantime, our written documentation and module specifications are already available. If you are comfortable reading specs, pinouts, compatibility notes, and word-based setup guides, you can review the documentation first and order modules now.
Please note that our configurator currently focuses on complete build combinations, so module-level Lab Access visual previews are not available yet. You can still use the configurator to explore colors, layouts, and build directions, then message us with your idea. We can help customize a Lab Access module setup for your project.
Please check the specs carefully before ordering to make sure the module matches your build, frame, firmware, and project needs.
Please find word-based documentation at:
https://docs.attaky.com/docs/modules/control/keyboard-bottom
