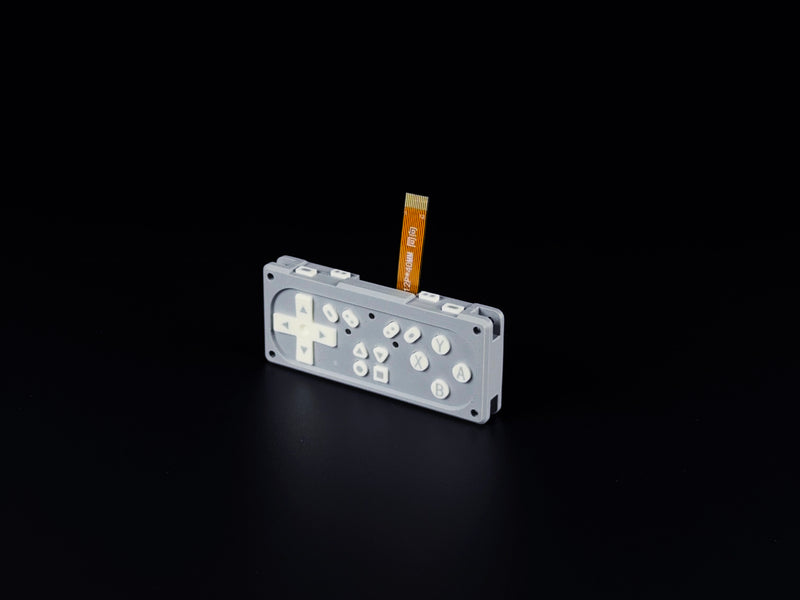

Control : Gamepad (Bottom) 1.0
$42.00
$22.00
SALE
Physical game controls for retro play and custom Attaky firmware.
Control: Gamepad (Bottom) 1.0 adds a direction pad, action buttons, shoulder controls, and function keys to your Attaky. Use it for retro games or custom firmware that reads gamepad input.
The shoulder controls are accessible from both the top edge and front face, so they remain usable when another module sits above the Gamepad. Its passthrough connection also lets you use it alongside a Bottom Keyboard.
Highlights
· Four-way direction pad and A, B, X, and Y action buttons.
· L1, L2, R1, and R2 shoulder controls, each with top and front buttons wired to the same input.
· Four additional function buttons, giving 16 input functions across 20 physical buttons.
· RGB status LED on each half of the module.
· I²C input through two 12-pin FPC connectors, with passthrough for a second compatible Control module.
· Module dimensions: 66 × 28 × 9.5 mm.
What you receive
1 × Control: Gamepad (Bottom) 1.0 module.
Before you use it
Requires an Attaky Core, the appropriate FPC connection and Frame, and compatible firmware. For Retro-Go gaming, add Media Junior for microSD storage and audio, plus your own microSD card and game files. Button assignments depend on the installed firmware.
Operating temperature: 0–40 °C. Keep the module dry; it has no water-resistance or IP rating.
Early Module Access
We made Attaky modules available earlier than planned because some community members have already requested them.
Video tutorials are coming soon, including guides for frame installation, module swapping, and connecting different Attaky modules together.
In the meantime, our written documentation and module specifications are already available. If you are comfortable reading specs, pinouts, compatibility notes, and word-based setup guides, you can review the documentation first and order modules now.
Please note that our configurator currently focuses on complete build combinations, so module-level Lab Access visual previews are not available yet. You can still use the configurator to explore colors, layouts, and build directions, then message us with your idea. We can help customize a Lab Access module setup for your project.
Please check the specs carefully before ordering to make sure the module matches your build, frame, firmware, and project needs.
Please find word-based documentation at:
https://docs.attaky.com/docs/modules/control/gamepad-bottom
